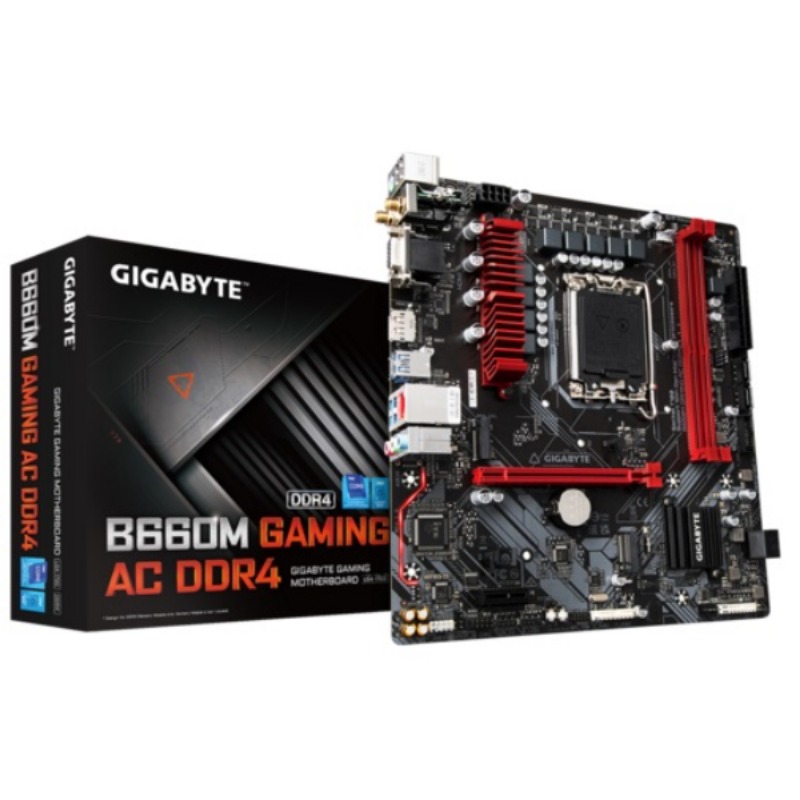

Gigabyte B660M GAMING AC DDR4 12th Gen Motherboard

Specification:
Brand: Gigabyte
Model: B660M GAMING AC DDR4
CPU: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset: Intel B660 Express Chipset
Memory: 2 x DDR4 DIMM sockets supporting up to 64 GB
Onboard Graphics:
Integrated Graphics Processor-Intel® HD Graphics support
Audio: Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIFI: WiFi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH: Bluetooth 4.2
Expansion Slots:
1 x PCI Express x16 slot
1 x PCI Express x1 slot
Storage Interface:
CPU:
1 x M.2 connector
1 x M.2 connector
4 x SATA 6Gb/s connector
USB:
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x D-Sub port
1 x HDMI port
1 x DisplayPort
3 x USB 3.2 Gen 1 ports
1 x USB Type-C port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks
I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Unique Features:
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software:
Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Operating System:
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 24.4cm x 22.5cm
Origin Of Country: Taiwan
Made in: china
Warranty:3 years
